Description
Reproduction for:
KABA-GILGEN PS 90 floor guide right side 38 mm Art.-Nr.: 10073
PA-slide for KABA-GILGEN PS 90 Art.-Nr.: 10073-1
floor guide 38 mm
In case of a PA slide (Art. No.: 10073-1) we offer bulk prices. Prices up-date in the shopping cart for the respective batches of:
as of 10 Pieces = 2,90 €/Pc.
as of 50 Pieces = 2,80 €/Pc.
as of 100 Pieces = 2,00 €/Pc.
as of 500 Pieces = 1,79 €/Pc.
as of 1000 Pieces = 1,49 €/Pc.
as of 5000 Pieces = 1,29 €/Pc.
as of 10000 Pieces = 1,19 €/Pc.

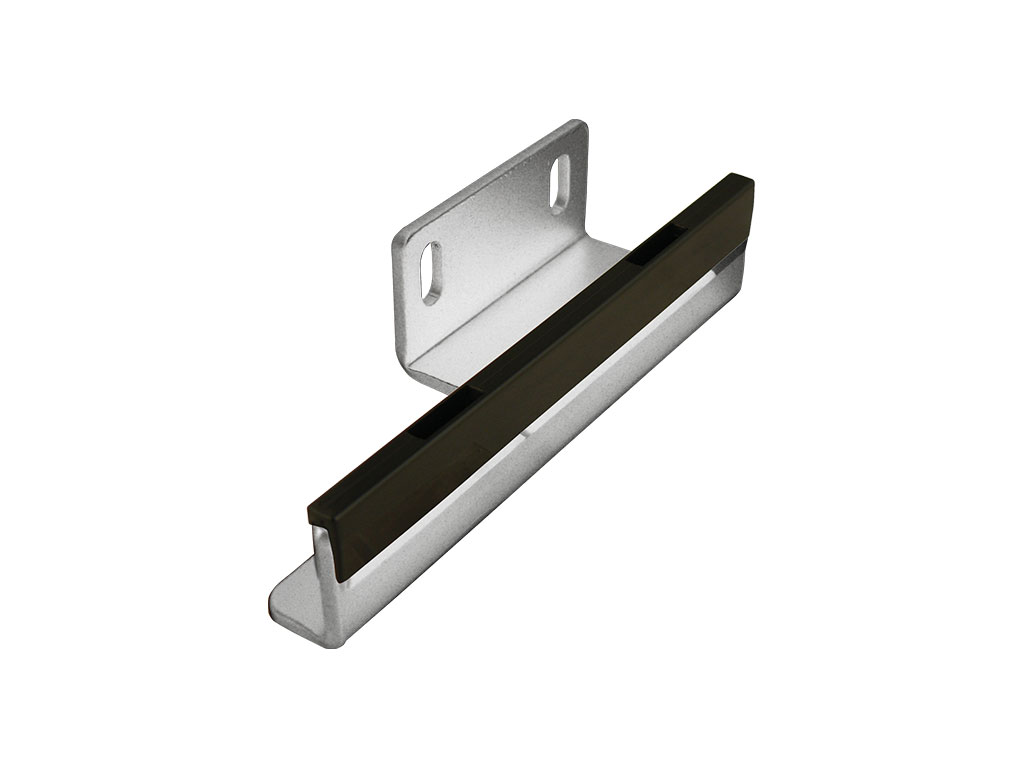

In case of this version (Art. No.: 10073) is supplied as shown in the picture, the reproduction for the KABA-GILGEN PS 90 floor guide right side 38 mm with spacer plates of 1 mm and 2 mm thickness.
In case of this version (Art. No.: 10073-1) is supplied as shown in the picture, only the PA slide for the KABA-GILGEN PS 90 floor guide right side 38 mm
If the centre distance from wall to centre of the moveable leaf groove is 38mm, this is the matching floor guide. Because the centre distance of the outer surface from the fastening side up to the pin centre of the floor guide does also amount to 38mm.

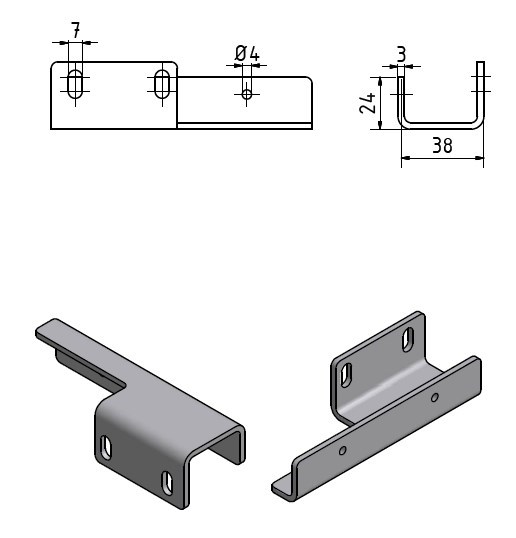

The floor guide shows the following geometries:
Width: 39,5 mm
Height: 29,5 mm
Length: 120 mm
2 x Ø 3,7 mm bore hole

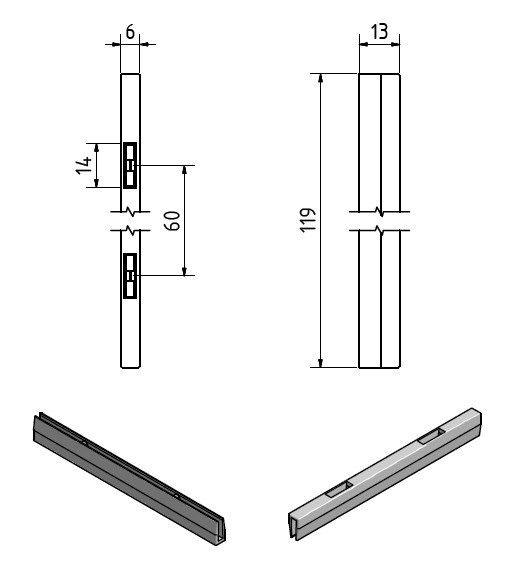

The floor guide shows the following geometries:
Width: 6,5 mm
Height: 13 mm
Length: 119 mm
4 x Ø 3,5 mm Lock in place clips
